Cloudflare Tunnel (Zero Trust)

A Cloudflare tunnel can be used as a reverse proxy in front of Speedtest Tracker when you want to expose the application publicly without exposing your IP address.

Cloudflare Tunnel Configuration

• Update your APP_URL to the public URL you are going to use and restart the service.

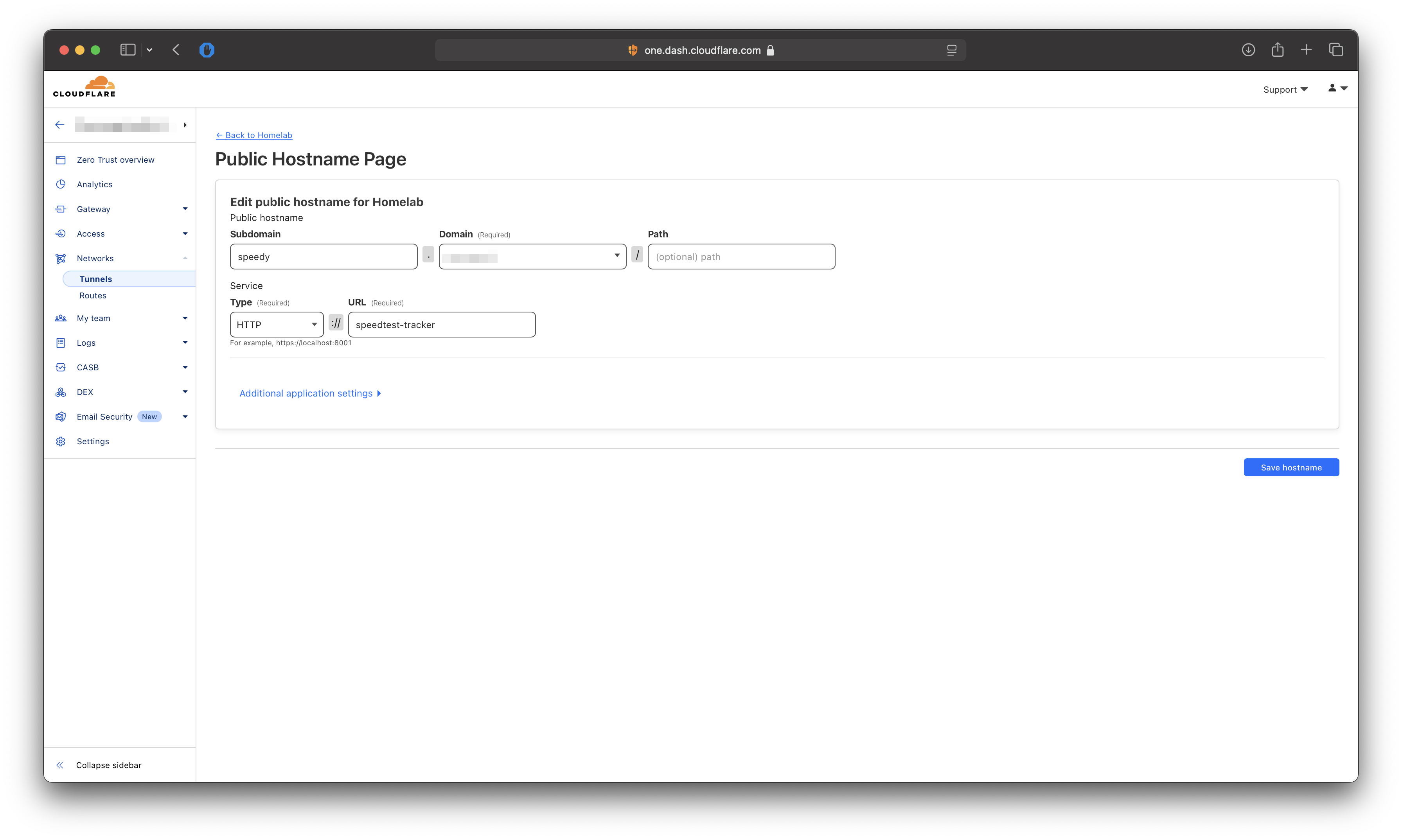

• In the Cloudflare panel go to Zero Trust -> Networks -> Tunnels page.

• For the tunnel you want to add the Speedtest Tracker to click on Edit or add a new tunnel.

• Go to Public Hostname.

• Click on Add a public hostname.

• Fill in the following fields.

  • Subdomain: The subdomain you want to access the Speedtest Tracker on.

  • Domain: The domain you want to access the Speedtest Tracker on.

  • Type: Connection type to the Speedtest Tracker (http/https)

    • When choosing HTTPS you will need to disable the TLS verification under Additional application settings -> TLS -> No TLS Verify

  • URL: The URL to access the Speedtest Tracker. This can be either the IP Address:Port or the container_name:port.

When using the container_name Cloudflare Tunnel and Speedtest Tracker need to be on the same Docker network.

Docker Configuration

Docker-Compose:

services:
    speedtest-tracker:
        container_name: speedtest-tracker
        environment:
            - PUID=1000
            - PGID=1000
            - APP_KEY=
            - DB_CONNECTION=sqlite
            - SPEEDTEST_SCHEDULE=
            - SPEEDTEST_SERVERS=
            - PRUNE_RESULTS_OLDER_THAN=
            - CHART_DATETIME_FORMAT=
            - DATETIME_FORMAT=
            - APP_TIMEZONE=
            - APP_URL=https://speedtest.yourdomain.com # Change this to your domain name
            - ASSET_URL=https://speedtest.yourdomain.com # Change this to your domain name
        volumes:
            - /path/to/data:/config
            - /path/to-custom-ssl-keys:/config/keys
        image: lscr.io/linuxserver/speedtest-tracker:latest
        restart: unless-stopped

Depending on your Cloudflare Tunnel configuration, you need to make sure the Speedtest Tracker and Cloudflare Tunnel are on the same docker network.

Added compose part	Description
APP_URL	URL you want to access the WebGui on.
ASSET_URL	URL used for loading all the needed assets. Need to be the same as the APP_URL.
